Selecting the right filtration solution is one of the most critical steps in maintaining efficiency, safety, and cost-effectiveness in industrial operations. Among the many filtration options available, high flow filter cartridges have become increasingly popular across water treatment plants, power generation, food and beverage processing, and chemical industries. Their ability to handle large volumes of liquid while maintaining high filtration efficiency makes them a reliable choice.
However, choosing the right high flow filter cartridge for your filtration system is not always straightforward. Each application comes with its unique requirements—such as flow rate, chemical compatibility, pressure, and dirt-holding capacity. If these factors are not carefully considered, it can lead to premature filter failure, reduced system performance, and higher operating costs.
This article provides a comprehensive guide on how to select the right high flow filter cartridges for your system. We will explore the key selection factors, material considerations, design variations, and industry applications to help you make an informed decision.

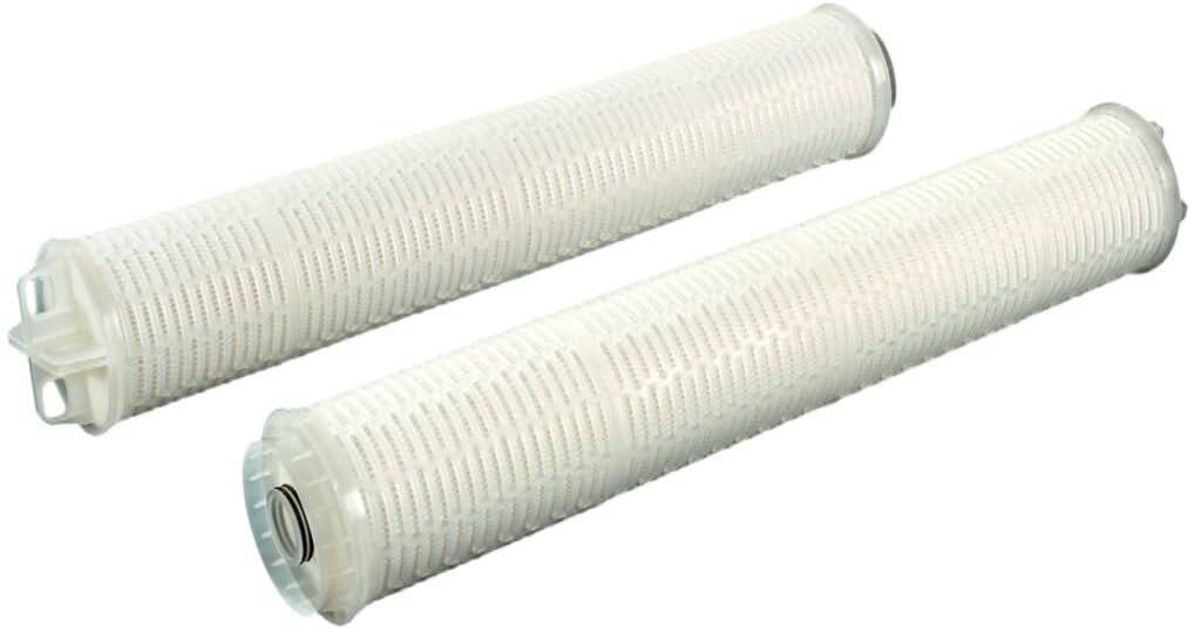

What Are High Flow Filter Cartridges?
High flow filter cartridges are large-diameter filter elements designed to process a high volume of liquid in a shorter amount of time compared to standard cartridges. They are commonly used in applications where large flow rates and low pressure drops are required.
Key Features:
- Large Diameter & High Surface Area – Typically ranging from 6–7 inches in diameter with pleated structures to maximize surface area.
- High Flow Capacity – Each cartridge can handle flow rates of up to 500 gallons per minute (GPM), depending on design.
- Longer Service Life – With larger dirt-holding capacity, fewer change-outs are required.
- Reduced System Footprint – One high flow cartridge can often replace multiple standard cartridges, saving space and cost.
These attributes make high flow filter cartridges particularly suitable for industries where continuous, large-scale filtration is necessary.
Why Choosing the Right High Flow Filter Cartridge Matters
Not all filtration systems or operational environments are the same. Selecting the wrong filter cartridge can create significant problems:
- Increased Downtime: Frequent filter changes disrupt production.
- Higher Operating Costs: Inefficient filters may require more replacements and energy.
- Contaminant Breakthrough: Using the wrong filtration rating may allow particles or microorganisms to pass through.
- Damage to Equipment: Improper filters can allow corrosion, scaling, or fouling to harm pumps, membranes, and downstream equipment.
Therefore, the selection process must consider multiple technical and operational aspects rather than relying solely on cost.
Key Factors to Consider When Selecting High Flow Filter Cartridges
1. Flow Rate Requirements
The most significant advantage of high flow filter cartridges is their ability to handle large volumes of liquid. Before making a selection, it is essential to calculate your system’s flow rate demand.
- System Flow Rate: Measure the maximum and average flow your system requires.
- Cartridge Capacity: Each cartridge has a maximum rated flow capacity. Oversizing is better than undersizing to avoid pressure drop issues.
- Parallel Housing Options: In extremely high-flow applications, multiple cartridges can be installed in parallel to achieve the desired capacity.
Failing to match flow rate requirements often results in clogged filters and reduced efficiency.
2. Filtration Efficiency & Micron Rating
The micron rating defines the particle size a filter can capture. Choosing the correct micron rating ensures your system operates at optimal purity levels.
- 1–5 Micron: Ideal for fine filtration such as pharmaceuticals, microelectronics, or beverage applications.
- 10–20 Micron: Commonly used in general water treatment, cooling towers, and power plants.
- 30–100 Micron: Suitable for coarse filtration where only large particles need to be removed.
It is also important to distinguish between nominal and absolute micron ratings. Absolute-rated filters provide more precise filtration, often required in industries with strict purity standards.
3. Filter Media Material
High flow filter cartridges come in various materials, each offering different levels of chemical compatibility, temperature resistance, and durability.
- Polypropylene (PP) – Excellent for general water treatment and chemical compatibility with most acids and alkalis.
- Glass Fiber – High dirt-holding capacity and thermal resistance, often used in high-temperature environments.
- Nylon or PES (Polyethersulfone) – Ideal for applications requiring high chemical resistance and fine filtration, such as pharmaceuticals.
- PTFE (Polytetrafluoroethylene) – Exceptional resistance to aggressive chemicals and solvents, but generally more expensive.
Selecting the wrong material can cause swelling, degradation, or leaching, potentially contaminating the fluid instead of purifying it.
4. Operating Temperature & Pressure
Every filtration system operates under specific pressure and temperature conditions.
- Temperature Range: Polypropylene cartridges typically operate up to 80°C, while specialized materials like PTFE can withstand higher.
- Pressure Drop: Check the maximum differential pressure rating. Exceeding it can cause cartridge collapse or bypassing.
- System Compatibility: Always confirm that the cartridge can handle the conditions of your system without compromising safety.
5. Dirt-Holding Capacity & Service Life
The dirt-holding capacity indicates how much particulate matter a filter can retain before reaching its terminal pressure drop.
- A higher dirt-holding capacity translates into longer service life and fewer replacements.
- Pleated high flow cartridges generally provide superior dirt-holding capacity compared to depth filters.
- Selecting a cartridge with low dirt-holding capacity for high-contaminant fluids will result in frequent replacements, driving up costs.
6. End Cap Configuration & Seal Integrity
End caps and seals ensure a leak-free fit within the filter housing.
- O-Rings vs Gaskets: O-rings often provide a more reliable seal, especially under high pressure.
- Compatibility: Ensure seal materials (EPDM, Viton, Silicone, etc.) are chemically compatible with your process fluid.
- Bypass Prevention: Improper sealing allows contaminants to bypass the filter, defeating its purpose.
7. Industry Standards & Certifications
For industries such as food, beverage, and pharmaceuticals, compliance with standards is critical.
- FDA Compliance: Ensures safety for food contact.
- NSF Certification: Common in potable water applications.
- ISO Standards: Guarantees quality and consistency.
- Pharma-Grade Validation: Required for critical drug manufacturing processes.
Selecting cartridges without the necessary certifications can result in compliance issues and product recalls.
Industry Applications of High Flow Filter Cartridges
High flow filter cartridges are versatile and used across a wide range of industries. Understanding the specific role they play in different sectors can guide you in making the right selection.
1. Water Treatment Plants
Municipal and industrial water treatment facilities rely heavily on high flow cartridges. Their ability to handle large volumes while maintaining high particulate removal efficiency ensures clean and safe water supply. They are especially critical in pre-filtration before reverse osmosis (RO) membranes, protecting the membranes from fouling and scaling.
2. Power Generation
Cooling water systems in power plants demand robust filtration solutions. High flow cartridges effectively remove debris and suspended solids, preventing clogging of heat exchangers and turbines. Their high capacity minimizes downtime and reduces overall maintenance.
3. Food and Beverage Industry
In beverage production, filtration must ensure product safety and taste consistency. High flow filter cartridges provide the necessary clarity by removing particles, yeast, and other impurities. With FDA-compliant materials, they are safe for direct food and beverage contact.
4. Oil and Gas Sector
From refining to offshore platforms, the oil and gas industry requires reliable filtration. High flow filter cartridges are used in produced water treatment, injection water systems, and chemical processing. Their chemical resistance and high dirt-holding capacity make them well-suited for these demanding environments.
5. Pharmaceutical & Biotech Applications
In drug production and biotech laboratories, contamination control is paramount. Absolute-rated high flow filter cartridges with sterile-grade media ensure the removal of bacteria and endotoxins, protecting the integrity of sensitive processes.
6. Desalination & Marine Applications
Desalination plants use high flow cartridges as a pre-treatment stage before reverse osmosis membranes. Their high capacity reduces cartridge replacement frequency, improving operational efficiency in environments with high salt and sediment loads.
Installation and Maintenance Tips
Even the best high flow filter cartridge will fail if improperly installed or maintained. Here are best practices to ensure long-term performance:
- Pre-Flush New Cartridges – Always flush new cartridges with clean water to remove loose fibers or particles.
- Ensure Proper Sealing – Check O-rings and gaskets for damage before installation. A poor seal can lead to bypass.
- Monitor Differential Pressure – Track the pressure drop across the filter to know when replacement is needed.
- Avoid Exceeding Flow Capacity – Overloading the cartridge shortens its life and reduces efficiency.
- Follow Manufacturer Guidelines – Adhere to recommended operating pressure, temperature, and flow conditions.
- Regular Change-Out Schedule – Replace cartridges before they reach maximum pressure drop to prevent system damage.
Cost Considerations
Cost is always a key factor in selecting filtration solutions. While high flow filter cartridges may appear more expensive than standard cartridges, the long-term savings often outweigh the initial investment.
- Reduced Quantity: One high flow cartridge can replace multiple standard cartridges, lowering purchase frequency.
- Lower Labor Costs: Fewer replacements mean reduced downtime and manpower requirements.
- Energy Savings: Their low-pressure drop reduces pump energy consumption.
- Extended Equipment Life: By protecting downstream components, they reduce repair and replacement expenses.
When calculating the total cost of ownership, high flow cartridges usually prove to be the more economical option.
Common Mistakes to Avoid
When selecting or using high flow filter cartridges, many companies make costly mistakes. Here are the most common ones:
- Overemphasis on Price – Choosing the cheapest option without considering performance often leads to higher long-term costs.
- Ignoring Chemical Compatibility – Selecting materials that are not compatible with process fluids causes premature failure.
- Incorrect Micron Rating – Too fine a filter results in unnecessary pressure drop; too coarse allows contaminants to pass.
- Improper Installation – Failing to ensure proper sealing leads to bypass and contamination.
- Neglecting Regular Maintenance – Waiting until the filter is completely clogged before replacement can damage the system.
How to Compare High Flow Filter Cartridges
When evaluating different cartridge options, consider the following criteria:
- Flow Capacity per Cartridge – Ensure it meets or exceeds system requirements.
- Surface Area – Larger surface area means higher dirt-holding capacity.
- Material Compatibility – Match media and seals with process fluids.
- Certifications – Check for FDA, NSF, or ISO compliance if needed.
- Service Life – Review case studies or manufacturer data on expected lifespan.
- Availability – Reliable supply chain ensures consistent replacement availability.
Working with a Reliable Supplier
Selecting the right cartridge is only half the battle; partnering with a reliable supplier ensures long-term success. A trusted supplier should provide:
- Technical Support – Assistance in choosing the right media, micron rating, and configuration.
- Quality Assurance – Certified products with consistent performance.
- Customization Options – Ability to tailor cartridges for specific applications.
- After-Sales Service – Ongoing support for maintenance, troubleshooting, and replacements.
For example, Econe Filtration offers a complete range of high flow filter cartridges, with solutions tailored to water treatment, food and beverage, oil and gas, and pharmaceutical industries. Working with a supplier like Econe Filtration ensures not only high-quality products but also expert guidance to optimize your filtration system.
Conclusion
Selecting the right high flow filter cartridges requires careful evaluation of multiple factors including flow rate, micron rating, material compatibility, dirt-holding capacity, and compliance with industry standards. By aligning cartridge specifications with your system’s operational requirements, you can ensure maximum efficiency, reduced costs, and consistent product quality.
High flow filter cartridges are not just a filtration choice—they are an investment in the reliability and sustainability of your operations. By avoiding common mistakes, considering total cost of ownership, and partnering with a reputable supplier, your filtration system can deliver long-term value.
Whether you operate in water treatment, pharmaceuticals, power generation, or the oil and gas industry, high flow filter cartridges are a proven solution for large-scale, high-demand filtration needs. With the right selection and maintenance, they will protect your equipment, improve efficiency, and ensure compliance with industry standards.
